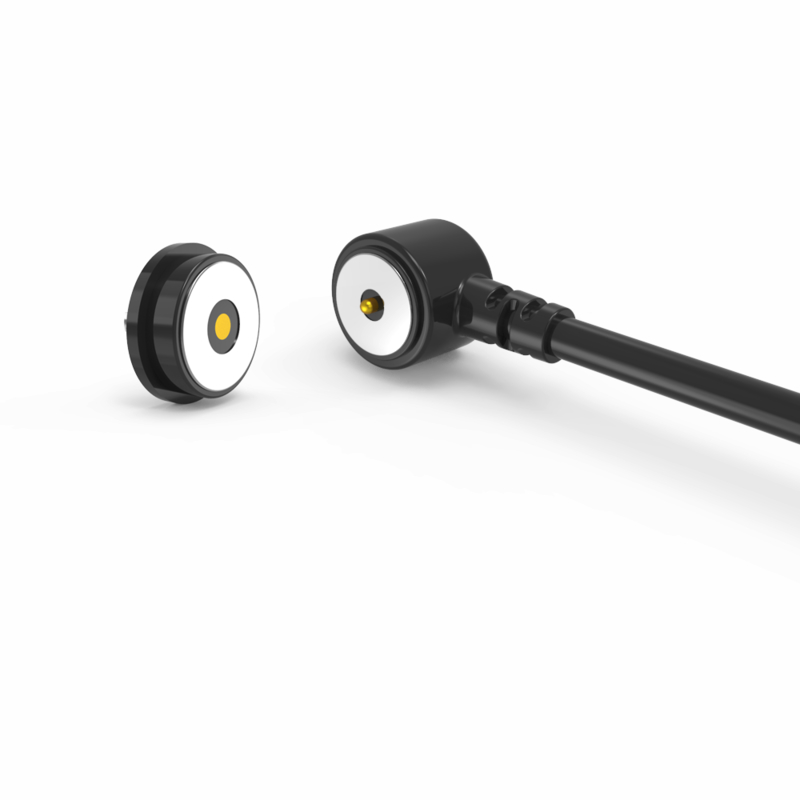

Black round male and female magnetic cable connector for asset strip

Black round male and female magnetic cable connector for asset strip, magnetic cable connector have the advantage of automatic adsorption, easy to operation. The pogo pin have a good electric conductivity, not easily corroded in a severe environment.

UPE is professional ODM/OEM magnetic connector and magnetic cable connector,provided magnetic charging solution for customers,development time is short and low-cost mold for customization.

Internal professional design team and advanced machinery workshop. We can cooperate to develop the products you need.

Advanced automatic machines, strictly process control system. We can manufacture all the Electrical terminals beyond your demand.

Male magnetic cable connector:

...Materials:
Pogo Pin: Brass(Plunger&Barrel plating 5U" Min Au over 60~100U"Ni);
Housing: black HTN+30%GF/LCP UL94 V-0;
Magnet:NdFeB N52 Plating Ni;
Cable:black OD 3.5*2C(TC65*0.08),
Wire Jacket: black TPE 90A .
Connector Jacket: black TPE 90A..
...Mechanical:
Spring force: 70g±20g,at 1.0mm working storke.
Full storke:1.2mm.
Mechanical life:10000cycle Min..
...Electrical:
Voltage:12 V.
Current: 3A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test: 48 H.

Female magnetic connector:

..Materials :
PINr:Lead-free C6801,plating 5U" Min Au over 60~100U"Ni;
Housing: Black HTN+30%GF UL94 V-0 ;
Shell: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
....Electrical:
Voltage:12.0 V.
Current: 3.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACHcompliant product.
...Salt spray test:48H.
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

 Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature,broken,same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection

How Magnetic Connectors Work?

.Both sides magnetically connect when placed in proximity to each other
.Light at the back of plug indicates power is flowing
.When the sides are pulled apart, power flow stops immediately
.They avoid short circuits as the connectors repel each other, and if they attract it is on the insulated parts (as both connectors free the same magnetic pole)

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin  Male Magnetic Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

1.Effortless User Experience

.Automatic Adsorption: Connects easily with a simple "snap" action – no precise alignment needed.

.Anti-Fall Safety: Detaches cleanly under tension (e.g., tripping on the cable), protecting devices from damage.

2.Exceptional Durability

.High Cycle Life: Rated for 100,000–200,000 connect/disconnect cycles – far exceeding standard connectors.

.Robust Design: Reinforced structure resists physical stress and frequent use.

3.Environmental Resilience

.IPX8 Waterproofing: Device-side (female) port withstands submersion (ideal for wearables, medical gear, outdoor devices).

.Dust Resistance: Sealed design prevents particle ingress.

4.High-Performance Power Delivery

.Fast Charging Support: Handles 5A–10A currents, enabling rapid charging for power-hungry devices.

.Low Resistance: Optimized for efficient high-current transmission with minimal energy loss.

5.Design Flexibility

.Customizable Aesthetics: Shape, color, and branding tailored to match host devices (e.g., wearables, IoT gadgets).

.Form Factor Adaptability: Can be designed for ultra-slim profiles or specialized enclosures.

6.Enhanced Safety

.Anti-Short Circuit: Built-in protection against accidental shorts during connection/misalignment.

.Foolproof Polarity: Physical design prevents incorrect insertion (reverse polarity protection).

7.Advanced Signal Capability

.High-Speed Data: Supports USB 2.0, HDMI 1.3, audio/video signals – replacing traditional ports without compromising function.

.Signal Integrity: Maintains stable transmission for video/audio even with frequent disconnects.

Product application areas are:

.Wearable devices (smart watches, pet locator, smart bracelet) charge/cable
.Laptop, tablet PC, PDA, handheld data terminal;
.Medical equipment, wireless devices, data communications equipment, telecommunications equipment, automation and industrial equipment;
.Aviation, aerospace, military communications and military electronics
.Automobile, automobile navigation, tester and measurement equipment

Our Advantages:
Customized Solutions – Our expert engineering team specializes in POGO PIN connectors, magnetic charging connectors, and industrial waterproof connectors, offering fast design support and short development cycles
Rapid Prototyping – Quick sample turnaround to meet urgent demands
Stable Quality & Reliability – Consistent performance for secure and dependable products.
Cost-Effective & Excellent Service – High-value solutions tailored to customer needs.
We are committed to providing safe, trustworthy, and high-quality products that exceed customer expectations.

Quality, integrity, and superior service are the core principles we steadfastly uphold. We sincerely look forward to collaborating with more partners to grow and succeed together
