2pin rectangle type male and female magnetic connector for 3A charging

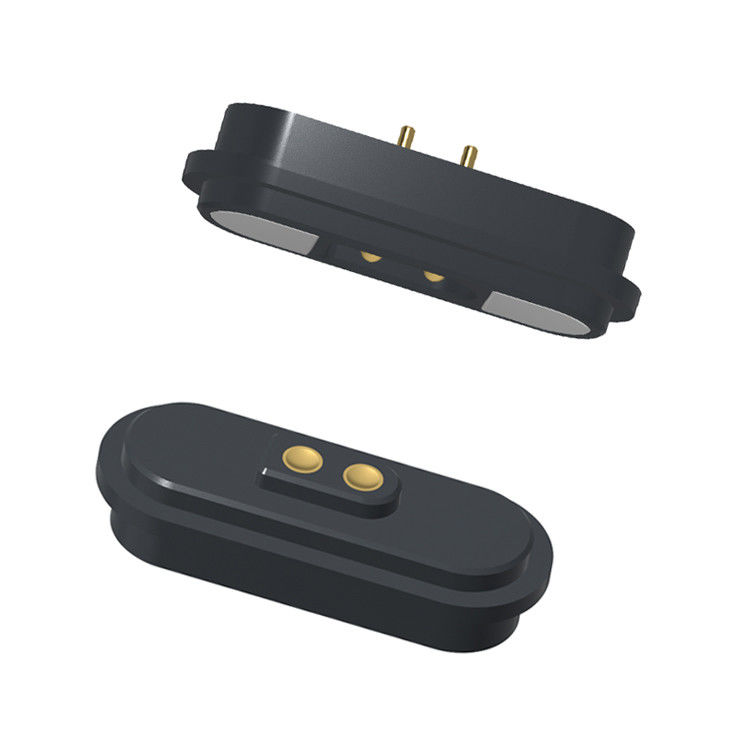

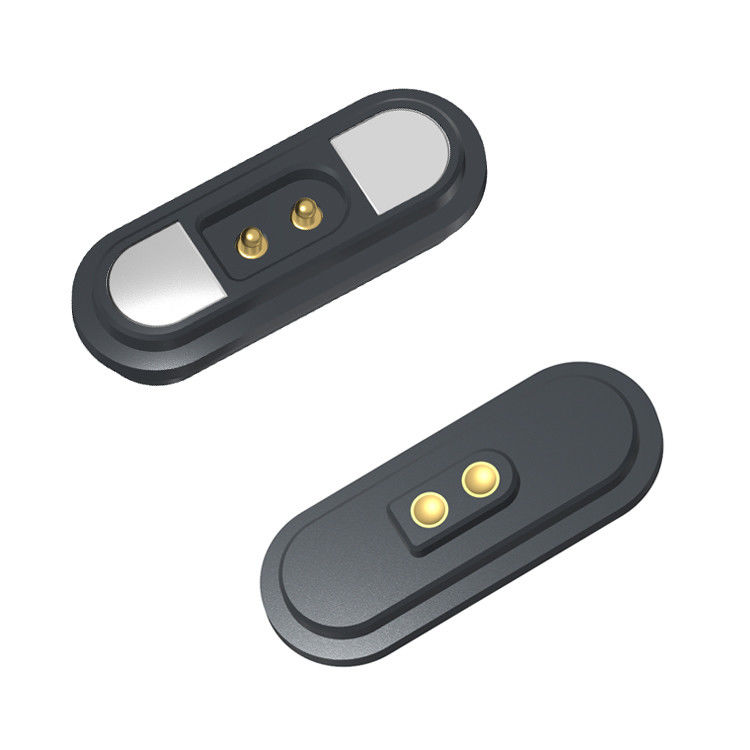

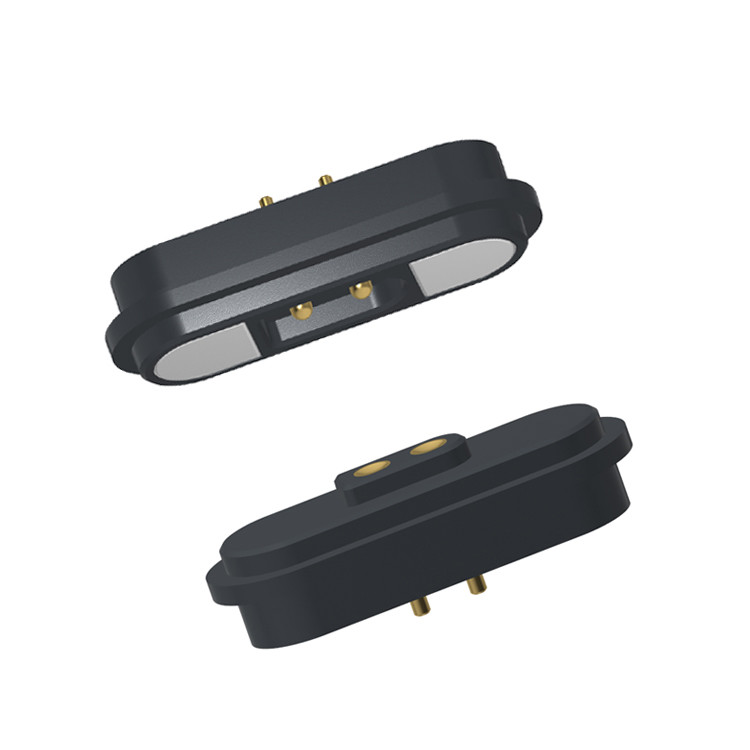

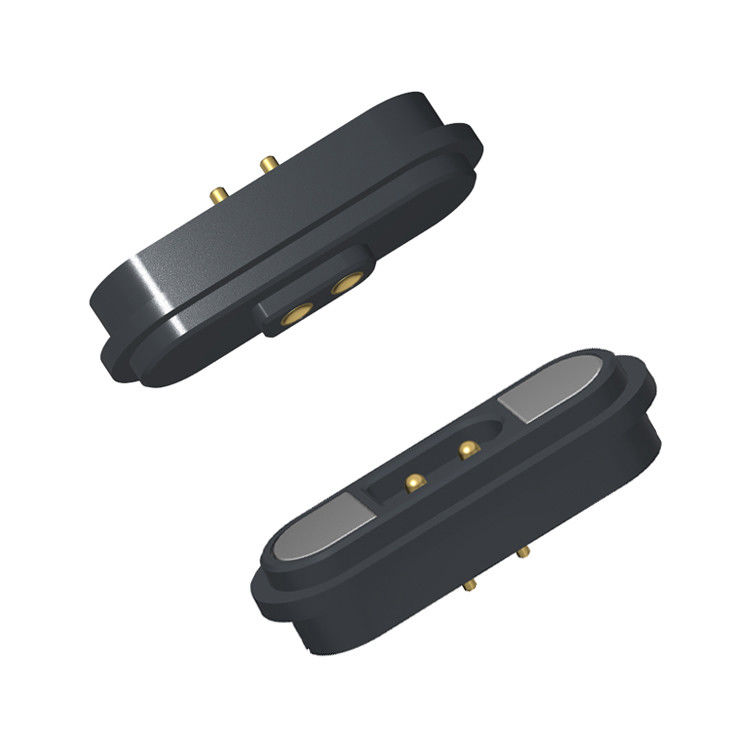

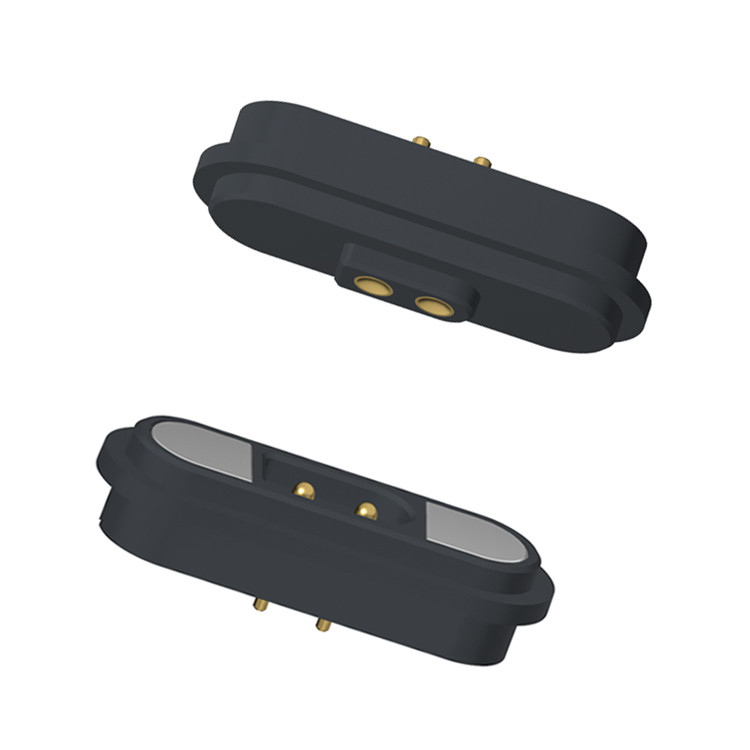

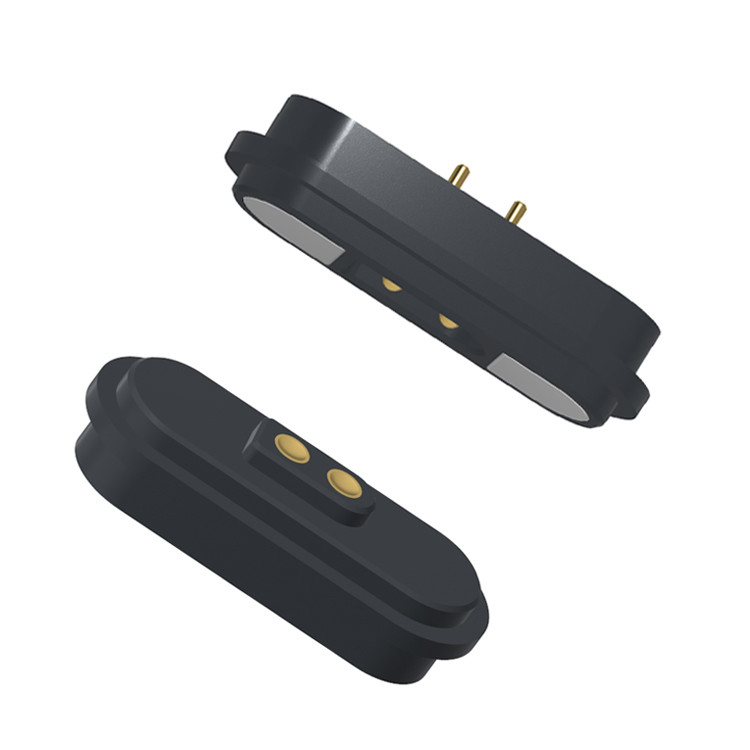

2pin rectangle type male and female magnetic connector for 3A charging.

UPE – Professional Magnetic Connector & Cable Manufacturer | Custom Solutions

UPE is a leading manufacturer of high-performance magnetic connectors and magnetic cable connectors, specializing in innovative, reliable, and customizable connectivity solutions.

Materials:
-Insulator: Black High Temperature Resistant Plastics

-PogoPin: Brass 0. 125um Au
-Plug: Brass 0.125 um Auover 1.5um~2.5um Ni.
-Magnet: NdFeB N52 1.5um~2.5um Ni
-Shell: SUS304

Mechanical:

-Contact force:80g±20g at 1.0mm working storke

-Male and female adsorption Life test: 10,000cycle

-Adsorption capacity test:The parent docking adsorption is 800g±20%

Electrical:

-Rated voltage:DC12V; Rated voltage: 3AMax.

-Contact resistance of spring pin: 50 milliohm Max.

Environmental performance:

-Operation Temperature: -25℃ to +60℃

-Environmental Test: Salt Spray 24 hours

2Pin Male Magnetic  Connectors & Female Magnetic Connector Parameter:

2Pin Male Magnetic  Connector Technical Drawing

2Pin Female Magnetic Connector Technical Drawing

Advantages of Magnetic Connector:

1. Effortless Connectivity
✔ Automatic Adsorption – Smart, user-friendly design enables instant and secure connections with magnetic alignment.
✔ Anti-Fall Protection – Easily detaches from the charging interface while keeping devices stable, reducing accidental drops.

2. Unmatched Durability
✔ Extended Lifespan – Rated for 100,000–200,000 cycles, ensuring long-term reliability.
✔ IPX8 Waterproof & Dustproof – Female end designed for harsh environments (submersion up to 1M for 30 mins).

3. High-Performance Charging & Data Transfer
✔ Fast Charging (5A–10A) – Supports high-current transmission for rapid power delivery.
✔ High-Speed Signal Transmission – Replaces traditional USB 2.0/HDMI 1.3, enabling Video/Audio signal transmission with stable high-frequency performance.

4. Customizable & Safe Design
✔ Aesthetic Flexibility – Tailored appearance to match your device’s design language.
✔ Anti-Short Circuit & Foolproof – Built-in protection against misuse and electrical faults.

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)

Why UPE shall be your partner?

1.Specialized Expertise in Magnetic Connectors

●Focused R&D: UPE  has dedicated experience in  magnetic connectors

●Customization: UPE can tailor magnet strength, pin plating (gold/nickel for ≤50mΩ resistance), and housing materials (black PBT/nylon) to your needs.

2. High Durability & Compliance

●10,000+ Cycles Guaranteed: Their connectors likely undergo rigorous testing to meet your mechanical life demand.

●Certifications: Compliant with UL, or RoHS standards—critical for consumer/medical markets.

3. Competitive Manufacturing

●Cost-Effective Tooling: UPE may offer low MOQs (e.g., 1K–5K units) with competitive pricing for small-to-medium batches.

●Quality Control: In-house testing for contact resistance, pull force, and current load to ensure reliability.

4. Fast Prototyping & Support

●3D Samples in Days: Rapid prototyping for fit/function checks

●Engineering Support: Assistance with pinout optimization, EMI shielding, or waterproofing (IP68).

5.Tailored Designs

Our in-house team of professional engineers collaborates closely with clients to develop fully customized magnetic pogo pin connectors tailored to your specific requirements.

6.Versatile Solutions

We design a wide range of magnetic connectors for diverse applications, ensuring optimal performance, durability, and seamless connectivity.

7. End-to-End Support

From concept to production, we provide end-to-end magnetic connector customization services, delivering solutions that meet exact industry standards and application needs.

How to Place Your Magnetic Cable Connector Order with UPE

1. Submit Your Requirements

Contact our sales team via:

Email: [union@upetech.net]

Phone: [+86 13434524996]

Online Form: [www.pogopinsconnector.com]

Provide details:

✔ Application (e.g., medical, automotive, consumer electronics)

✔ Connector type (e.g., magnetic pogo pin, charging cable)

✔ Specifications (voltage, current, size, waterproof rating, etc.)

✔ Quantity & lead time

2. Get a Custom Solution (If Needed)

Our engineers will review your needs and propose a custom design (if required).

We’ll share 3D models, samples, or technical drawings for approval.

Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.

Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
