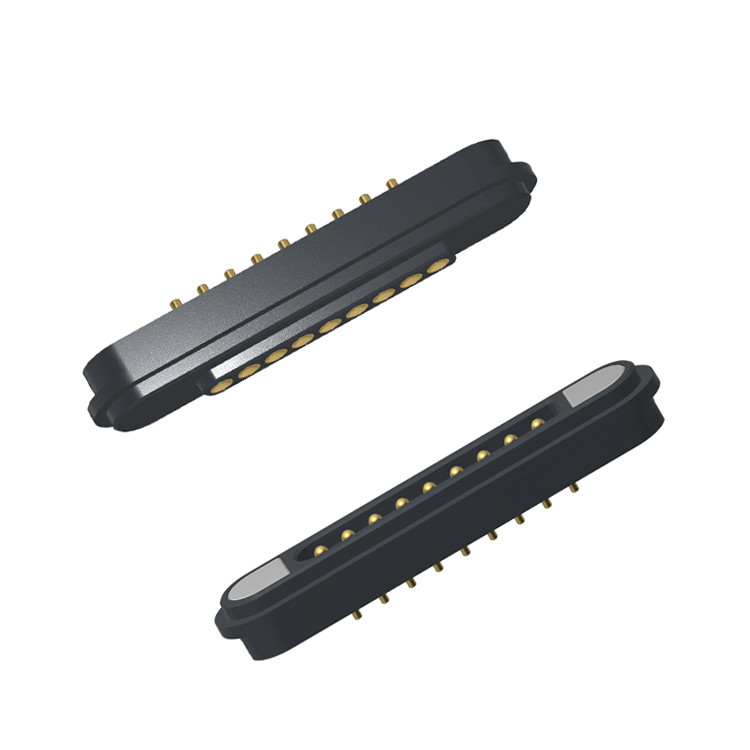

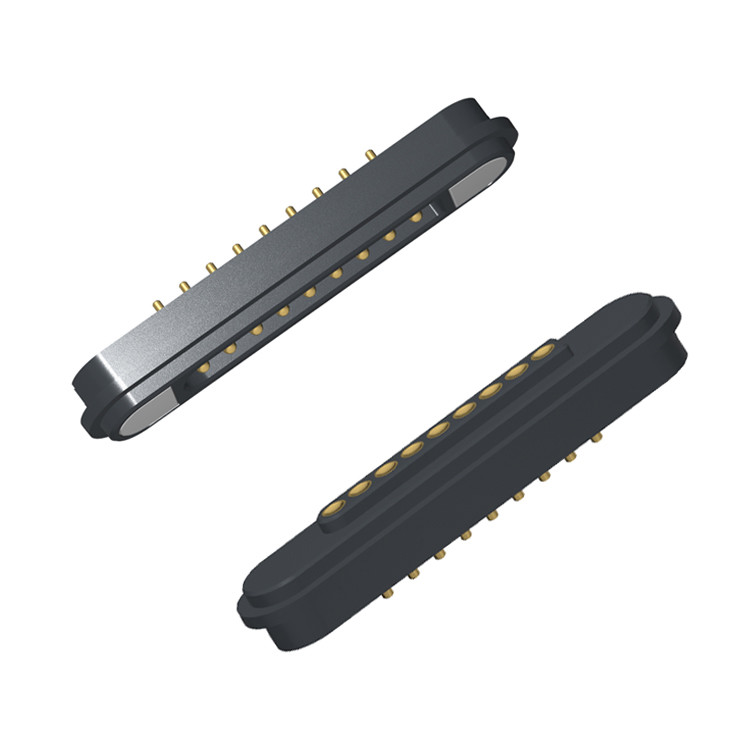

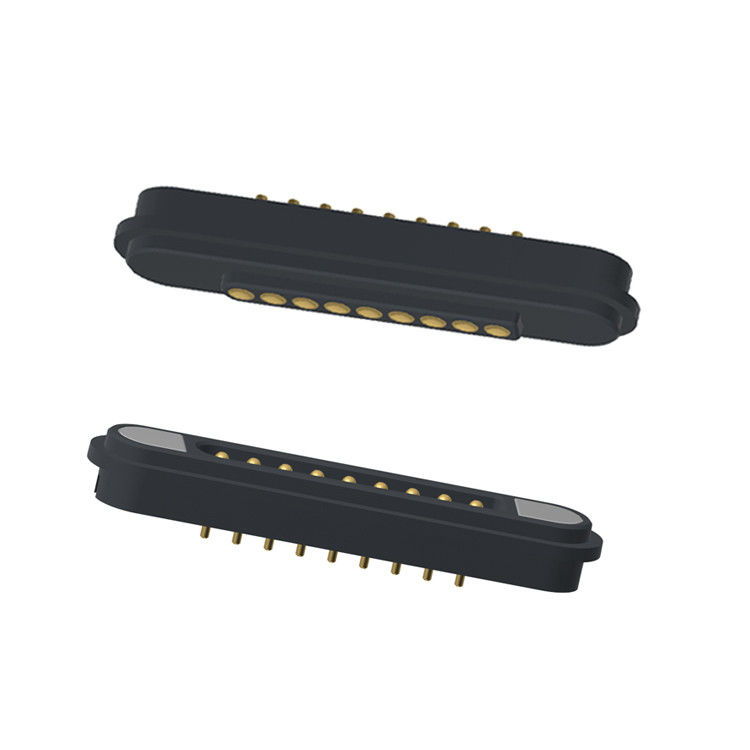

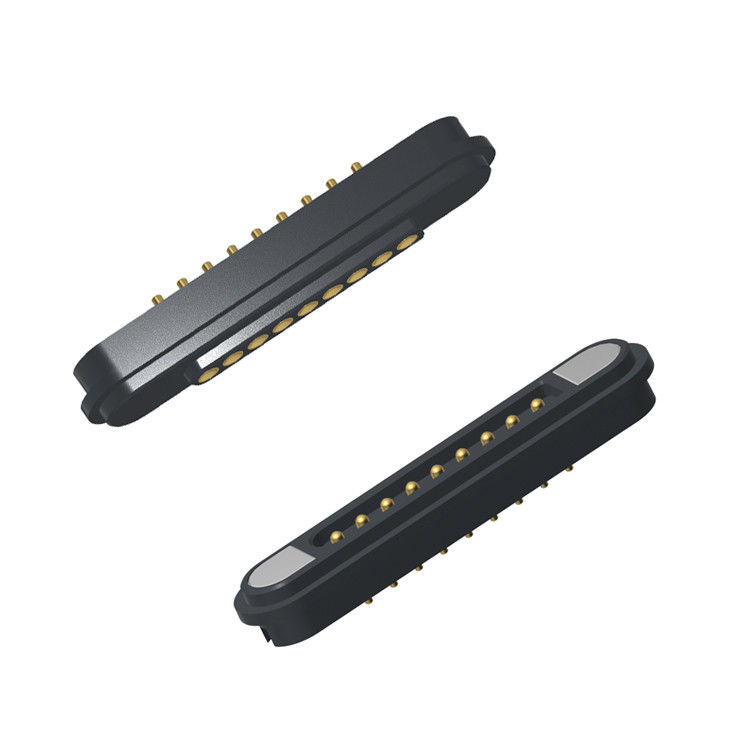

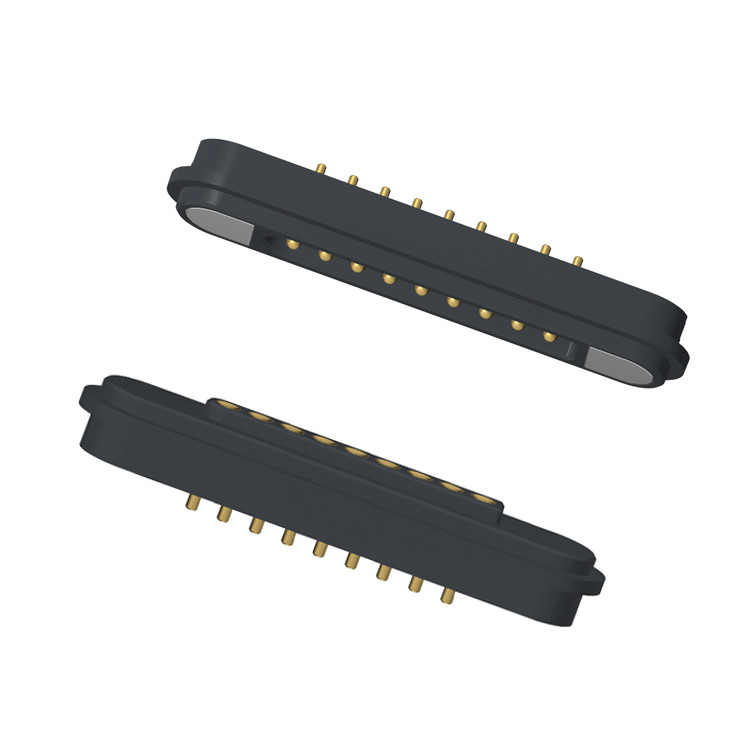

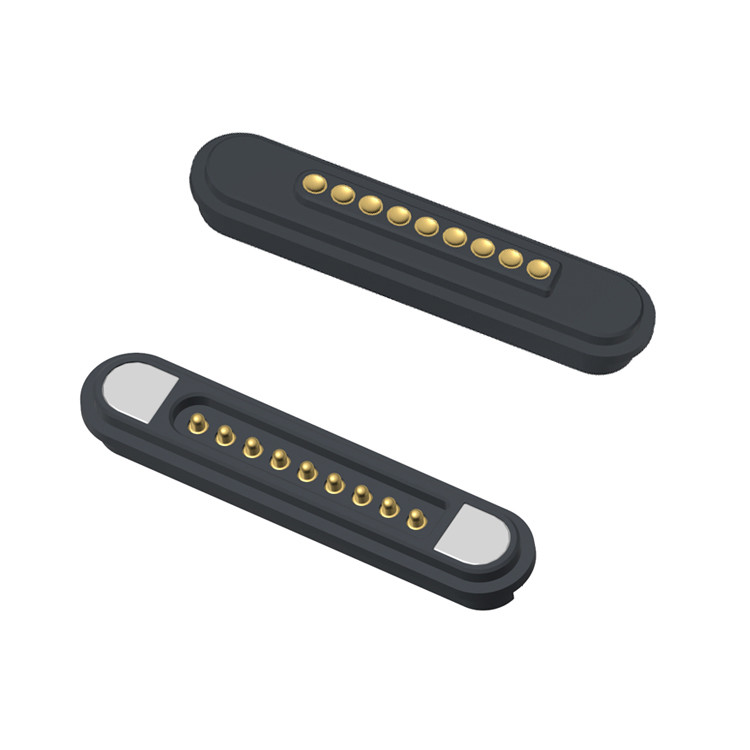

600G Magnetic Force 9pin Pogo Pin Magnetic Connector for Solar Simulator

600G Magnetic Force  9pin Pogo Pin Magnetic Connector for Solar Simulator

UPE – Professional Magnetic Connector & Cable Solutions Manufacturer

We design and manufacture professional magnetic connectors & magnetic cable connectors. Our in-house engineering team partners with you to create fully customized magnetic pogo pin connector solutions, precisely tailored to your unique requirements.

As a professional manufacturer of magnetic connectors and magnetic cable connectors, UPE provides end-to-end customization. Our dedicated design engineers work directly with you to understand your specific needs and challenges. We then develop bespoke magnetic pogo pin connector products and integrated solutions, delivering the exact magnetic connectivity you require.

To ensure the contact mechanical life of the pogo pin, NEVER compress it beyond the defined working stroke specified in the drawing. Over-compression can damage the internal spring, leading to reduced performance or failure.

Materials:

Housing: Black HTN UL94V-0

Pogo Pin: Brass C3604 Plating Au 0.125um, Spring: SUS304
Female pin: Brass Plating Au 0.125um

Magnet: N52 NdFeB Plating Ni Cu Ni

Mechanical:

Contact force:80g±20g at 1.0mm working storke

Male and female adsorption Life test: 10,000cycle

Adsorption capacity test: The female docking adsorption is 600g±20%

Electrical:

Rated voltage:DC12V; Rated voltage: 3AMax.

Contact resistance of spring pin: 50 milliohm Max.

Environmental performance:

Temperature tolerance:260℃

Operation Temperature: -25℃ to +80℃

Environmental Test: Salt Spray 48 hours

9Pin Male Magnetic Connectors & Female Magnetic Connector Parameter:

9Pin Male Magnetic Connector Technical Drawing

9Pin Female Magnetic Connector Technical Drawing

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic connector products application:

Why UPE shall be your partner?

1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
7. Product environmental standards

How to Place Your Magnetic Connector Order with UPE

1. Submit Your Requirements
Provide details such as:

.Connector type (power, data, hybrid, waterproof, etc.)

.Voltage & current ratings

.Cable length & specifications

.Magnetic polarity & alignment preferences

.Quantity & lead time

Special requirements (IP rating, shielding, certifications, etc.)

. Option 1: Fill out our RFQ (Request for Quote) Form on our website.
. Option 2: Email your specs directly to sunion@upetech.net (or your designated contact).

2. Receive a Custom Quote
Our engineering team will review your requirements.

We’ll provide a competitive quote, including:Pricing/Lead time/Prototyping options (if needed)

3. Approve & Confirm Order
Once the quote is approved, we’ll finalize the design & production schedule.

For new designs, we may offer 3D models or samples for testing.

4. Production & Quality Assurance
UPE manufactures your order with strict quality control checks.

We can provide test reports & certifications upon request.

5. Fast Delivery & Support
Your order ships via your preferred logistics method (DHL, FedEx, sea freight, etc.).

Our team remains available for technical support & future orders.

Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.

Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
